JL258A

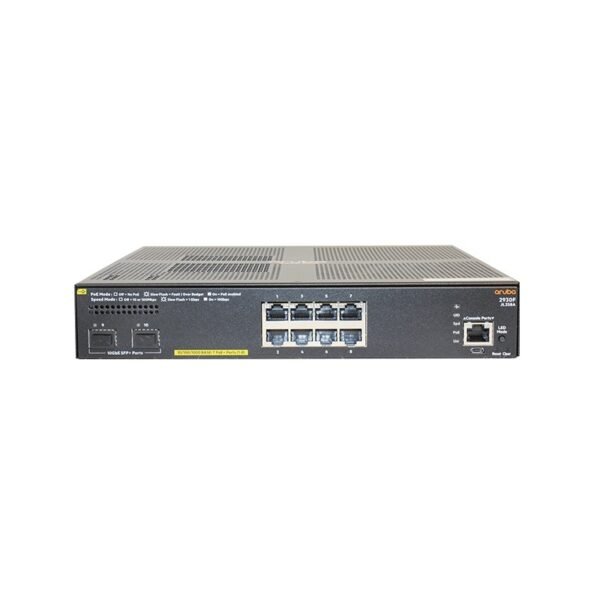

| Model: | HPE JL258A – Aruba 2930F Switch |
| Detail: | Aruba 2930F 8G PoE+ 2SFP+ Switch |
$642.00
Available on backorder
This item: JL258A
Available on backorder
$642.00
$642.00
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
2 - DAY DELIVERY
Apr 20 Apr 24
Guaranteed safe & secure checkout
Description
Reviews (0)
Q & A
JL258A Specification | |
Type | Aruba 2930F 8G PoE+ 2SFP+ Switch |
System specifications | |
I/O ports and slots | 8 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only |
Additional ports and slots | 1 dual-personality (RJ-45 or USB micro-B) serial console port |
Memory and processor | Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress, 4 GB eMMC |
Management | Aruba AirWave Network Management; IMC – Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB) |
Performance specifications | |
1000 Mb Latency | < 3.8 μs (64-byte packets) |
10 Gbps Latency | < 1.6 μs (64-byte packets) |
Throughput | up to 41.7 Mp/s |
Switching capacity | 56 Gb/s |
Routing table size | 10000 entries (IPv4), 5000 entries (IPv6) |
MAC address table size | 32768 entries |
Physical specifications | |
Dimensions | 4.39 x 25.4 x 25.4 cm ( 1.73 x 10 x 10 in) 1U height |
Weight | 2.0 kg ( 4.41 lb) |
Electrical specifications | |
80plus.org Certification | N/A |
Description | Power supply meets DoE VI certification |
Maximum heat dissipation | 558.09 kJ/hr ( 529 BTU/hr) |
Voltage | 90 – 264 V ac, rated |
Current | 1.5/0.8 A |
Maximum power rating | 155 W |
Idle power | N/A |
Frequency | 50/60 Hz |
PoE power | 125 W PoE+ |
Environmental specifications | |
Operating temperature | 0°C to 45°C (32°F to 113°F) up to 5000 Feet – 0C to 40C (32F to 104F) up to 10000 Feet |
Operating relative humidity | 15% to 95% @ 40°C ( 104°F) noncondensing |
Nonoperating/Storage temperature | -40°C to 70°C (-40°F to 158°F) up to 15000 Feet |
Nonoperating/Storage temperature | 15% to 95% @65°C ( 149°F) noncondensing |
Acoustic | Power: 0 dB, Pressure: 0 dB Fanless |
Airflow direction | Side-to-side |
Safety certifications | |
Safety | UL 60950-1, 2nd Edition EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013 IEC 60950-1:2005 +A1:2009 +A2:2013 CSA 22.2 No. 60950-1-07 2nd EN 60825-1:2007 / IEC 60825-1:2007 Class 1 |
Emissions | EN 55022:2010/CISPR 22 Class A FCC CFR 47 Part 15 Class A VCCI Class A; ICES-003 Class A CNS 13438 |
Immunity | Generic:EN 55024:2010/CISPR 24 ESDIEC 61000-4-2 RadiatedIEC 61000-4-3 EFT/BurstIEC 61000-4-4 SurgeIEC 61000-4-5 ConductedIEC 61000-4-6 Power frequency magnetic fieldIEC 61000-4-8 Voltage dips and interruptionsIEC 61000-4-11 HarmonicsIEC/EN 61000-3-2 FlickerIEC/EN 61000-3-3 |
