J9772A
‘

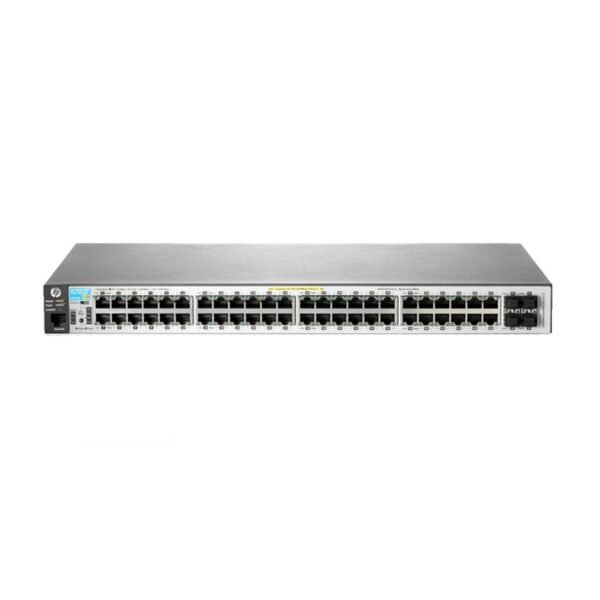

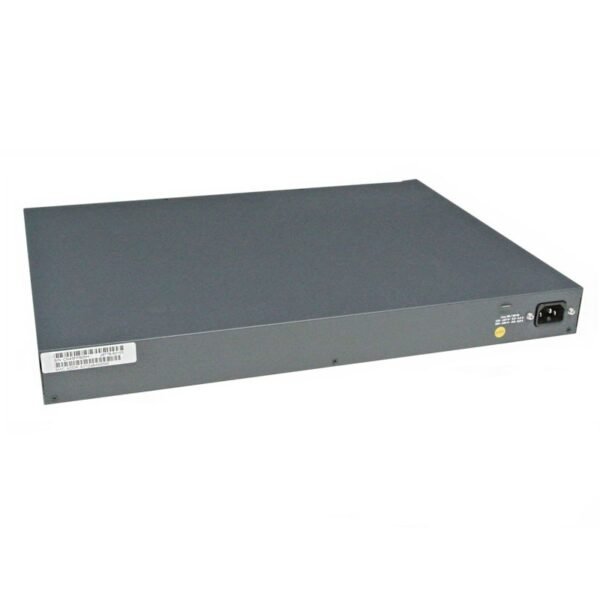

| Model: | HPE J9772A – Aruba 2530 Switch |
| Detail: | Aruba 2530 48G PoE+ Switch |
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
For delivery and returns information, please review our Return & Refund Policy or contact our team before ordering. Eligibility and time limits depend on the product condition, order type, manufacturer terms, and the terms agreed in your quotation.
Interpretation and Definitions
For delivery and returns information, please review our Return & Refund Policy or contact our team before ordering. Eligibility and time limits depend on the product condition, order type, manufacturer terms, and the terms agreed in your quotation.
Accessories from hundreds of brands
J9772A Specifications | |
| Type | Aruba 2530-48G-PoE+ Switch |
| System Specifications | |
| Ports |
|
| Memory and processor | Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 3 MB dynamically allocated. |
| Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting. |
| Management | IMC – Intelligent Management Center; Command-Line Interface (CLI); Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB. |
| Performance (IPv6 Ready Certified) | |
| 1000 Mb latency | < 2.3 µs (LIFO 64-byte packets) |
| 100 Mb Latency | < 7.4 µs (LIFO 64-byte packets) |
| Throughput | Up to 77.3 million pps (64-byte packets) |
| Switching capacity | 104 Gb/s |
| MAC address table size | 16000 entries |
| Physical specifications | |
| Dimensions (W x D x H) | 44.3 x 32.26 x 4.45 cm (17.44 x 13.00 x 1.75 in) (1U height) |
| Weight | 4.72 kg (10.4 lb) |
| Electrical specifications | |
| Maximum heat dissipation | 236 BTU/hr (248.98 kJ/hr), (switch only: 236 BTU/hr; combined switch + max. PoE devices: 1624 BTU/hr) |
| Voltage | 100 – 127 / 200 – 240 V ac |
| Current | 5.8/2.9 A |
| Idle power1 | 40.1 W |
| Maximum power rating2 | 476 W |
| PoE power | 382 W |
| Frequency | 50/60 Hz |
| NOTE: 1: Idle power is the actual power consumption of the device with no ports connected. 2: Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE power is the total power budget available to all PoE ports. | |
| Environmental specifications | |
| Operating temperature | 0° to 45°C (32° to 113°F) |
| Operating relative humidity | 15% to 95% @ 40°C (104°F), noncondensing |
| Non-operating/storage temperature | -40° to 70°C (-40° to 158°F) |
| Non-operating/storage relative humidity | 15% to 90% @ 65°C (149°F), noncondensing |
| Altitude | Up to 3 km (10,000 ft) |
| Acoustic | Power: 33.6 dB, Pressure: 43.9 dB |
| Safety agency certifications | |
| Safety | UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1 |
| NOTE: IEEE 802.3az applies to Gigabit models only; IEEE 802.3at and IEEE 802.3af apply to PoE+ models only. When using SFPs with this product, SFPs with revision “B” or later (product number ends with the letter “B” or later, e.g., J4858B, J4859C) are required. | |
