J9854A

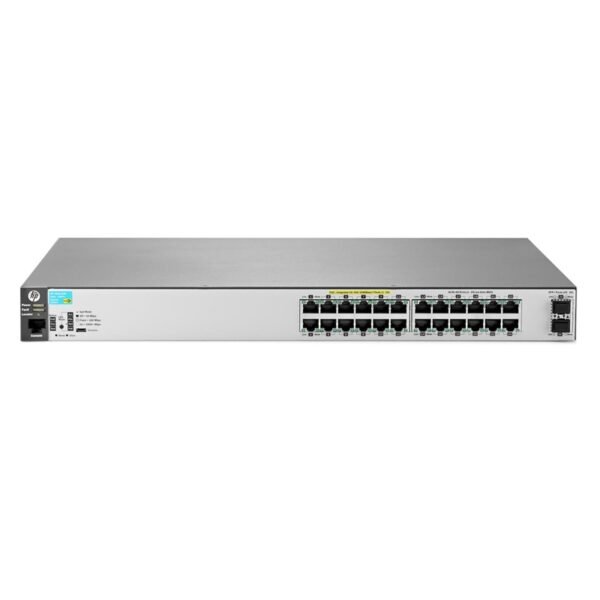

| Model: | HPE J9854A – Aruba 2530 Switch |
| Detail: | Aruba 2530-24G-PoE+-2SFP+ Switch |
Available on backorder
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
2 - DAY DELIVERY
Apr 20 Apr 24
Guaranteed safe & secure checkout
Description
Reviews (0)
Q & A
J9854A Specifications | |
Type | Aruba 2530-24G-PoE+-2SFP+ Switch |
System specifications | |
Ports |
|
Memory and processor | ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3DIMM; packet buffer size: 1.5 MB |
Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack mounting kit available); horizontal surface mounting; wall mounting. |
Management | IMC – Intelligent Management Center; command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB |
Performance (IPv6 Ready Certified) | |
100 Mb Latency | < 7.3 µs (LIFO 64-byte packets) |
1000 Mb Latency | < 12.7 µs (LIFO 64-byte packets) |
10 Gb/s Latency | < 4.0 µs (LIFO 64-byte packets) |
Throughput | up to 65.4 million pps (64-byte packets) |
Switching capacity | 88 Gb/s |
MAC address table size | 16000 entries |
Physical specifications | |
Dimensions (W x D x H) | 44.3 x 33.02 x4.45 cm (17.44 x 13.00 x 1.75 in) (1U height) |
Weight | 3.9 kg (8.6 lb) |
Electrical specifications | |
Maximum heat dissipation | 118 BTU/hr (124.49 kJ/hr), (switch only: 118BTU/hr; combined switch + max. PoE devices:757 BTU/hr) |
Voltage | 100 – 127 / 200 – 240 V ac |
Current | 2.9/1.4 A |
Idle power1 | 24.7 W |
Maximum power rating2 | 222.2 W |
PoE power | 195 W |
Frequency | 50/60 Hz |
NOTE: 1: Idle power is the actual power consumption of the device with no ports connected. 2: Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE power is the total power budget available to all PoE ports. | |
Environmental specifications | |
Operating temperature | 0° to 45°C (32° to 113°F) |
Operating relative humidity | 15% to 95% @ 40°C (104°F), noncondensing |
Non-operating/storage temperature | -40° to 70°C (-40° to 158°F) |
Non-operating/storage relative humidity | 15% to 90% @ 65°C (149°F), noncondensing |
Altitude | up to 3 km (10,000 ft) |
Acoustic | Power: 31.3 dB, Pressure: 24 dB |
Safety agency certifications | |
Safety | UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN60950-1 |
NOTE: IEEE 802.3az applies to Gigabit models only; IEEE 802.3at and IEEE 802.3afapply to PoE+ models only. SFPs with revision “B” or later (e.g., J4858B, J4859C) are required with this product. This product supports only 1 Gigabit SFP & 10 Gigabit SFP+ transceivers, as well as 10 Gigabit Direct Attach Cables. | |
