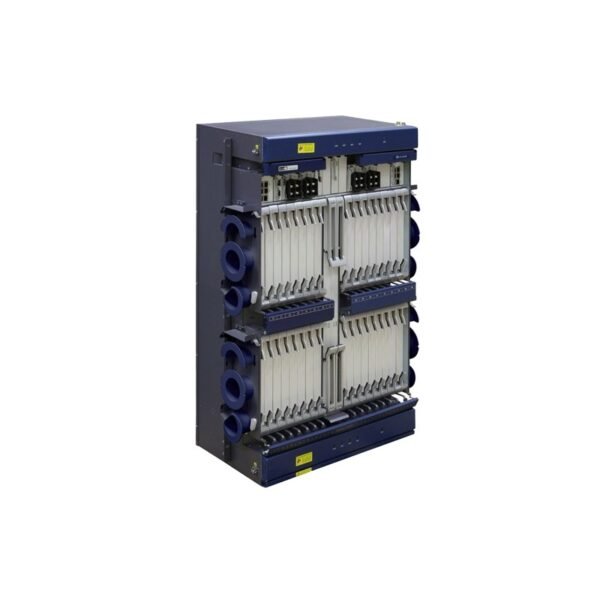

Huawei OptiX OSN 8800 T32

Huawei OptiX OSN 8800 T32 Specification

Dimensions (HxWxD)

900 x 498 x 295 mm

Number of Service Slots

32

Switching Capability

Optical

Up to 20-degree C-D-C-G ROADM

Electrical

3.2T ODUK,1.28T VC4 & 80G VC3&VC12,1.6T Packe

Channel Spacing

50/100GHz fixed grid for 40/80-ch

37.5-400 GHz flex-grid

Wavelength Range

DWDM: 1529.16 nm to 1560.61 nm (C Band, ITU-T G.694.1)

Rate per Channel (Max.)

100G, 200G, 400G

Service Types Supported

SDH, SONET, Ethernet, SAN, OTN, video

Topology

Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring and mesh

Redundancy and Protection

Equipment

Cross-connect 1+1 backup, control board 1+1 backup and power 1+1 backup, clock 1+1 backup

Network

OTN: Optical line protect, optical channel protect, ODUk SNCP protection, ODUk SPRing protection, OWSP*,ASON SDH: linear 1+1/1:N/ring MSP, SNCP, TOA, DNI, DLAG&LAG and Fiber Shared-virtual Path Protection, ASON PKT: PW APS, Tunnel APS, MSTP, LAG, LPT, MC LAG

Optical Power Management

ALS, AGC, ALC, APE, IPA

Synchronization

IEEE 1588v2, Sync-E

2 Mbit/s or 2 MHz (with the SSM function)

External clock source (1PPS+TOD)

ASON/GMPLS

Automatic network discovery

ODUk/λ level protection and restoration

5-Level SLA (Service Level Agreement) provisioning

End-to-end service configuration

Shared Risk Link Group (SRLG)

Traffic engineering

T-SDN

Automation, IP+Optical , BOD

Installation Rack

ETSI 300/600mm rack, 23 inch rack

Heat Dissipation

Fan

Power Supply

-48VDC/-60VDC

Operation Environment

Temperature:

Long-term operation: 5°C to 45°C

Short-term operation: -5°C to 50°C

Relative humidity:

Long-term operation: 5% to 85%

Short-term operation: 5% to 95%
