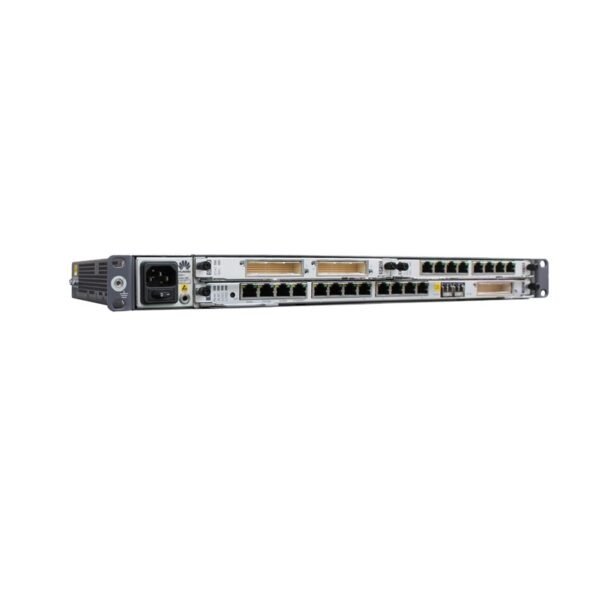

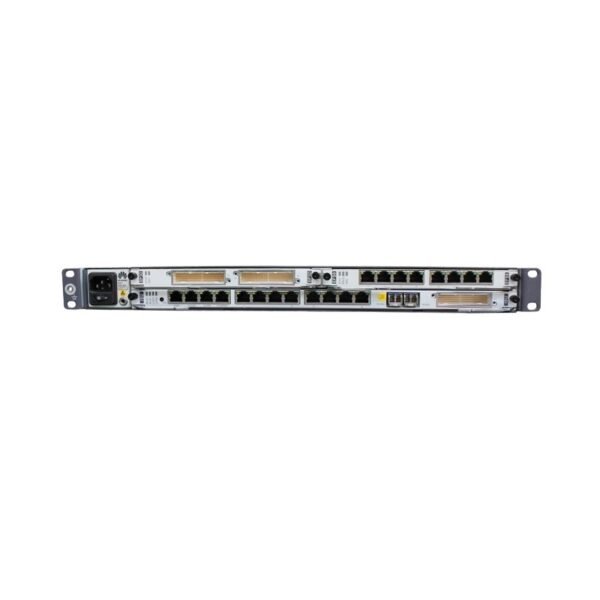

Huawei OptiX OSN 500
< tbody >
| Model: | Huawei OptiX OSN 500 – Huawei OptiX OSN 500 |
| Detail: | The OptiX OSN 500 is of a pure packet architecture, and supports a variety of service access modes. It completes Huawei’s optical transmission system, and sharpens the competitive edges of Huawei’s optical transmission products. |
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
2 - DAY DELIVERY
Apr 20 Apr 24
Guaranteed safe & secure checkout
Description
Q & A
Huawei OptiX OSN 500 Specification | ||
| Dimensions | 44mm (H) x 442mm (W) x 220mm (D) | |
| Switch capacity | Packet: 7.2 Gbit/s and TDM: 21.25 Gbit/s (higher order), 5 Gbit/s (lower order) | |
| Service slots | 3 slots | |
| Supported interfaces | Ethernet interface | FE/GE |
| SDH interface | STM-1/4 | |
| PDH interface | E1/E3; T1/T3 | |
| CES interface | ATM/IMA E1, ch STM-1 | |
| Networking Mode | Supporting pure packet or SDH networking Supporting single-fiber bidirectional transmission | |
| Power Supply | P48V DC/ -60V DC, 220V AC/110V AC | |
| Operation Environment | Temperature
| Long term: -5ºC ~ 45ºC Short term: -5ºC ~ 55ºC |
| Relative Humidity | Long term: 5% ~ 85% Short term: 5% ~ 95% | |
| Ethernet Feature | E-Line, E-LAN and QinQ MPLS-TP based VPWS and VPLS MS-PW ETH PWE3 IGMP Snooping v2 Blacklist, Broadcast packet suppression, ACL | |
| QoS | Hierarchical QoS scheduling and traffic shaping DiffServ mode based on traffic classification Simple traffic classification, complex traffic classification, per hop behavior (PHB), and ACL Committed access rate (CAR) PQ scheduling priority, weighted round robin (WRR) and PQ+WRR queuing Tail drop and weighted random early detection (WRED) Shaping based on port scheduling priority | |
| OAM | MPLS-TP OAM | LSP/PW OAM: CC, LB, LT AIS, RDI LM, DM LCK, TST CSF |
| Ethernet OAM | ETH-CC, ETH-Loopback, ETH-Link Trace, Remote Loopback, Remote Fault Detection, RMON(RFC 2819) | |
| Protection | Equipment-level Protection | power 1+1 backup |
| MPLS-TP based networklevel Protection | LSP/PW Linear protection, Ring protection Anti multifailure protection based on MS-PW LAG, MC-LAG, Dual-homing protection, LPT ERPS, MSTP | |
| SDH based network-level Protection | 2 fiber MS-SP Ring 1+1/1:n (n<=5) Linear MSP,SNCP LAG, LPT, LCAS | |
| Synchronization | Both Ethernet and SDH networks supporting clock synchronization Supporting G.813, Synchronous Ethernet and IEEE 1588v2 synchronization Adaptive clock recovery (ACR) One external clock inputs/outputs (2 MHz or 2 Mbit/s) Two external time signals(1pps+TOD) | |
