C1112-8PLTEAWE
‘

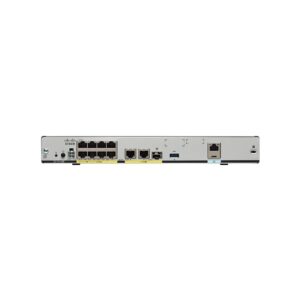

| Model: | C1112-8PLTEAWE – Cisco Router ISR 1100 |
| Detail: | ISR 1112 8 Ports, E WiFi domain |
C1112-8PLTEAWE Specification | |
GE | N/A |
GE/SFP combo | 1 |
ADSL2/VDSL2+ | 1 G.FAST (Annex B) |
LTE Advanced (CAT6) | 1 EMEAR & North America |
802.11ac | 2X2 MIMO |
GE | 8 |
PoE | 4 |
PoE+ | 2 |
Integrated USB 3.0 AUX/console | Yes |
| Memory (default and maximum) | DRAM: 4 GB Flash: 4 GB |
| Console | · Micro USB console (USB 3.0). |
| Mini-USB port (reserved) | · Micro-USB port to support remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0). |
| 802.11ac | · 2×2 SU-MIMO/MU-MIMO with two spatial streams. · Maximal Ratio Combining (MRC). · 20-, 40-, and 80-MHz channels. · PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz). · Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx). · 802.11 Dynamic Frequency Selection (DFS). · Cyclic Shift Diversity (CSD) support. |
| Software | · Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 (8.7 for 1101 series) MR1 or later. |
| External power supply | · AC input voltage: Universal 100 to 240 VAC. · Frequency: 50 to 60 Hz. · Maximum output power: 66W (default). · Output voltages: 12 VDC. · Optional PoE and PoE+: ◦ Single 150W power supply required for Cisco 1100-8P series router ◦ Single 115W power supply required for Cisco 1100-4P series router · External output voltage: 48 VDC. |
| USB 3.0 | · USB devices supported: ◦ USB eTokens and USB flash memory · Note: Devices USB 3.0 supports to be connected externally. |
| LEDs | · WWAN (green/amber). · SIM status (green/amber). · Received signal strength indication (RSSI) bar (green). · 3G/LTE service (green/amber). · GPS (green/amber). · Speed and link for Gigabit Ethernet WAN port (green). · Speed and link for all Fast Ethernet LAN ports (green). |
| Physical dimensions (H x W x D) | C111X Models · 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet on LTE models). · 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet on non-LTE models). C1101-4PLTEP and C1101-4PLTEPWX Models · 1.73 x 9.75 x 6.6 in. (43.9 x 247.6 x 167.6 mm) (includes rubber feet models). |
| Weight | C111X Models · 1.94 lb to 4.59 lb (1.94kg to 2.08 kg). · 4.50 lb (2.04 kg) with LTE Advanced. · 4.76 lb (2.16 kg) with Wave 2 802.11ac Dual Radio. · 4.89 lb (2.22 kg) with LTE Advanced plus Wave 2 802.11ac Dual Radio. |
| Environmental operating range | · Nonoperating temperature: -4° to 149°F (-0° to 65°C). · Nonoperating humidity: 5% to 95% relative humidity (noncondensing). · Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m). · Operating temperature: 32° to 104°F (0° to 40°C). · Operating humidity: 10% to 85% relative humidity (noncondensing). · Operating altitude: 0 to 10,000 ft (0 to 3000 m). |
